SR NO.	DRG. NO.	DIMNS.		wt.In Gms.
		(TOL. ±0.3mm)
		A	B
1	SI- HAT 12x22	12	22	228
2	SI- HAT 14x24	14	24	273
3	SI- HAT 16x24	16	24	290
4	SI- HAT 24x24	24	24	360

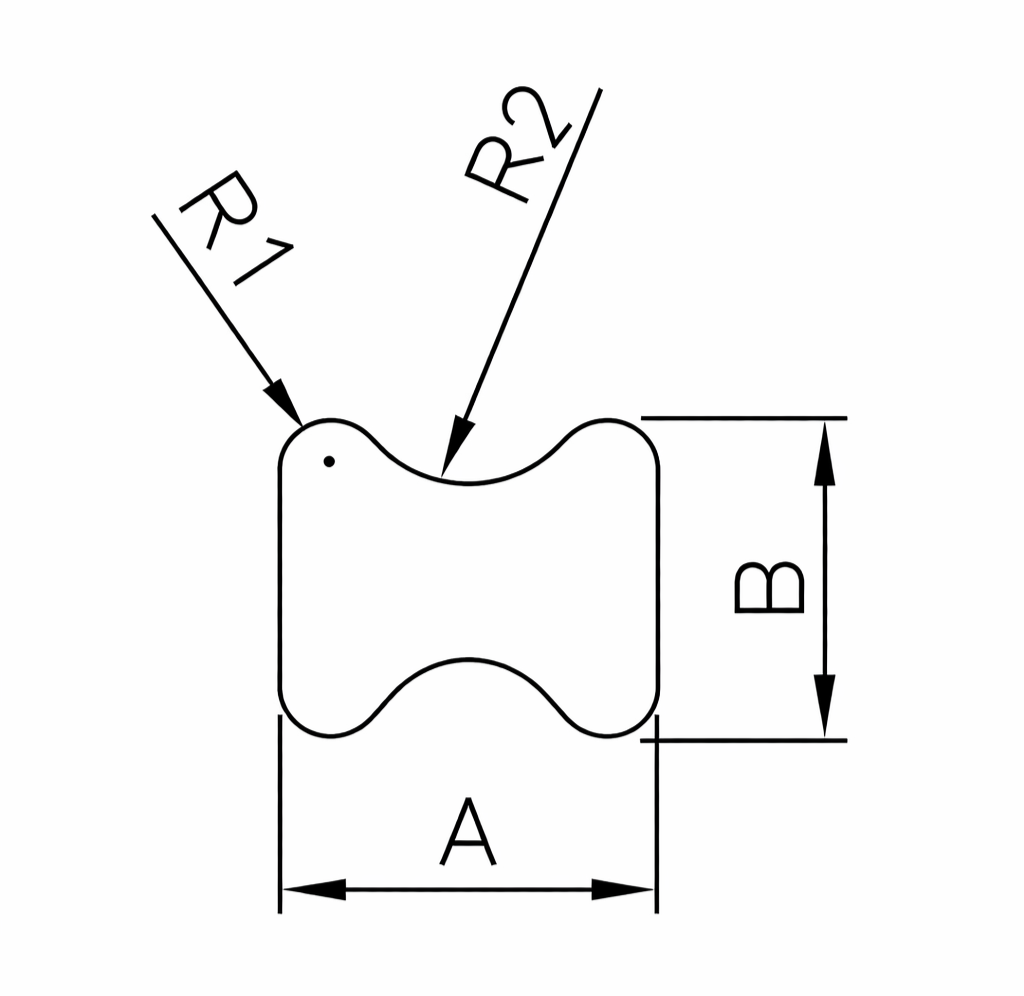

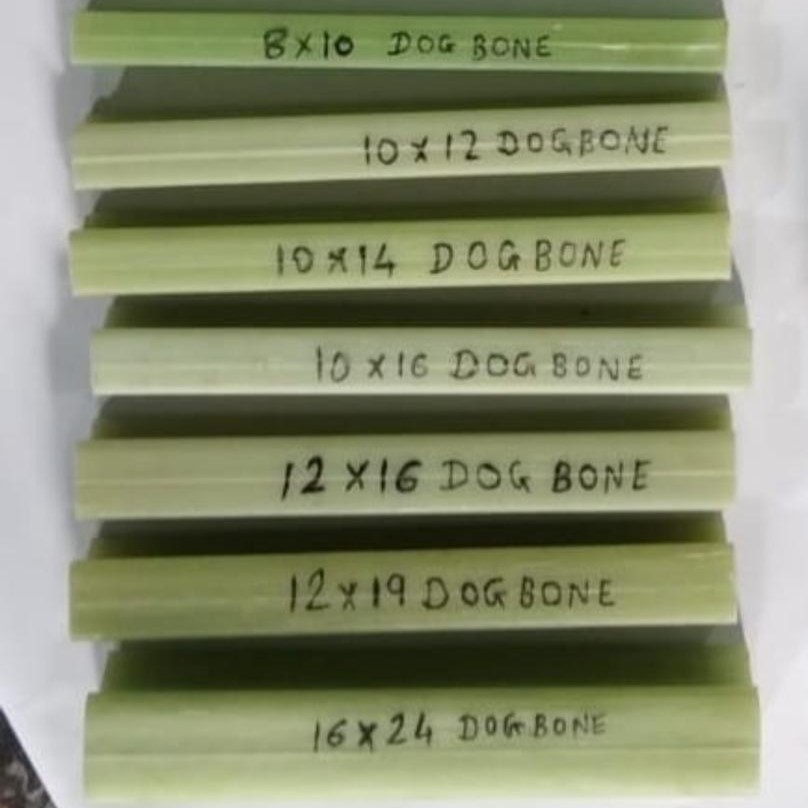

SR NO.	DRG. NO.	DIMNS.				wt.In Gms.
		(TOL. ±0.3mm)		R1	R2
		A	B	R1	R2

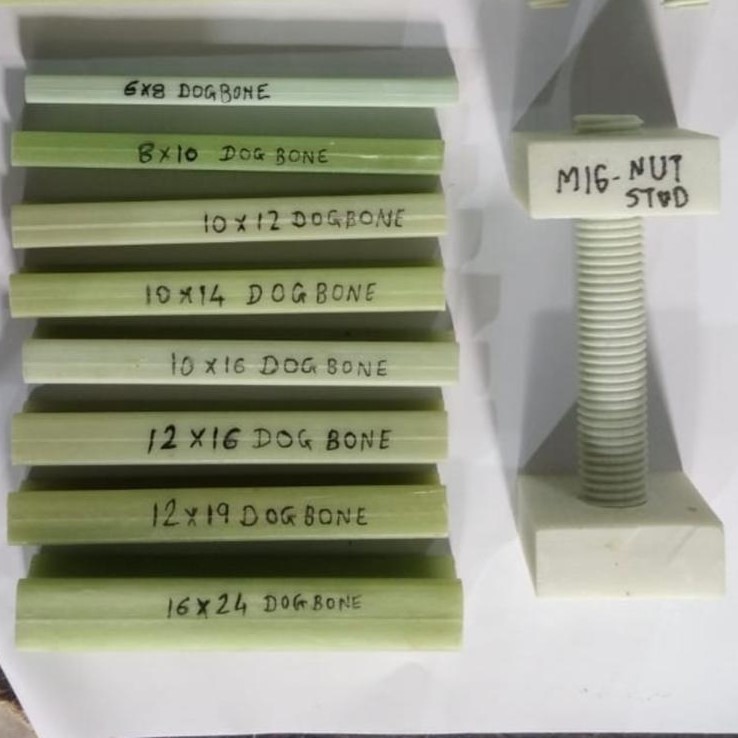

1	SI-D.B. 8x6	8	6	1.0	2.0	82
2	SI-D.B. 10x8	10	8	1.2	3.3	133
3	SI-D.B. 12x10	12	10	1.6	3.5	200
4	SI-D.B. 13x8	13	8	2.2	4.0	174
5	SI-D.B. 13x10	13	10	2.2	4.0	239
6	SI-D.B. 14x10	14	10	1.6	4.5	242
7	SI-D.B. 16x10	16	10	1.8	7.1	254
8	SI-D.B. 16x12	16	12	1.8	6.1	307
9	SI-D.B. 16x14	16	14	1.5	7.0	369
10	SI-D.B. 19x12	19	12	1.8	9.5	357
11	SI-D.B. 20x18	20	18	2.5	6.5	609
12	SI-D.B. 23x12	23	12	3.0	10.5	444
13	SI-D.B. 30x16	30	16	4.0	15	802

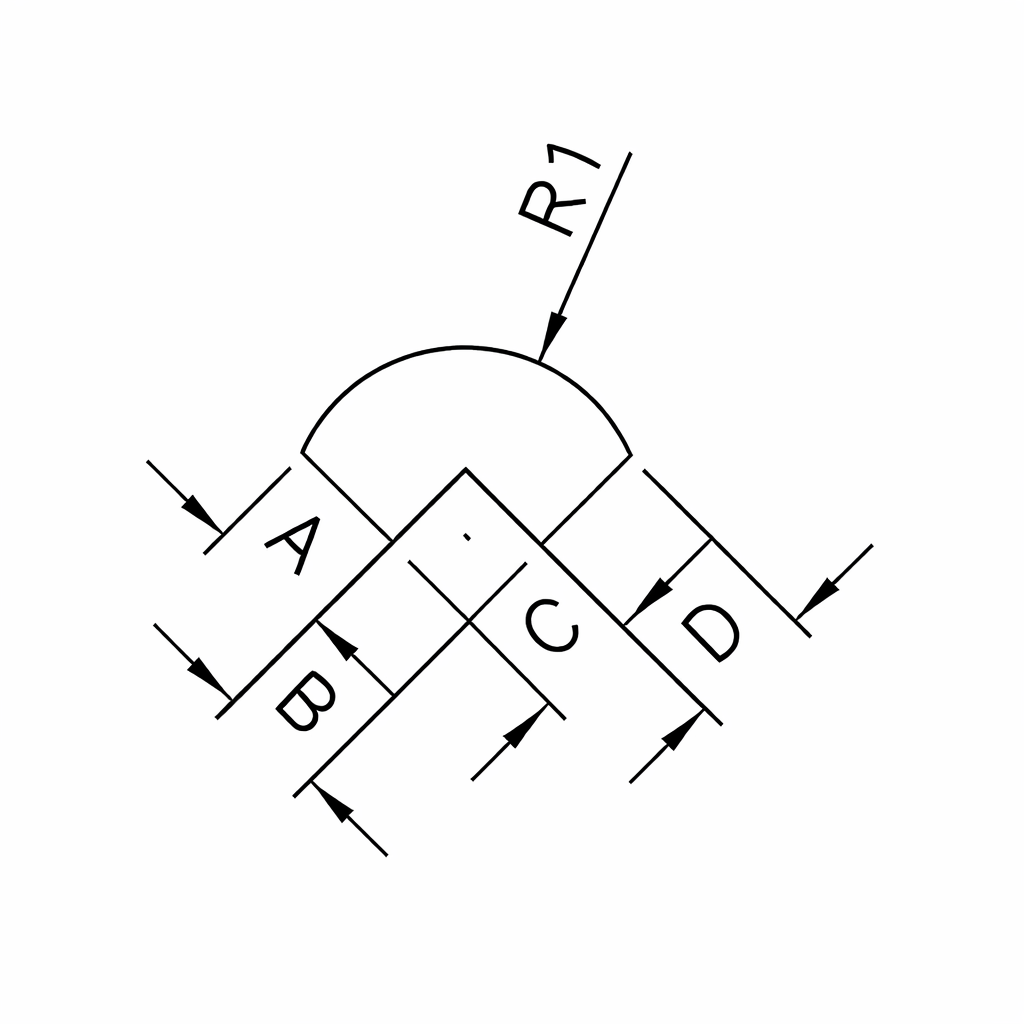

SR NO.	DRG. NO.	DIMNS.					wt.In Gms.
		(TOL. ±0.3mm)				R1
		A	B	C	D	R1
1	SI-C.A. 4x4	4	4	4	4	6.1	100
2	SI-C.A. 6x6	6	6	6	6	9.2	226
3	SI-C.A. 6.5x6.5	6.5	6.5	6.5	6.5	7.5	270
4	SI-C.A. 7x7	7	7	7	7	10	270
5	SI-C.A. 8x8	8	8	8	8	9.0	400
6	SI-C.A. 10x10	10	10	10	10	10	591
7	SI-C.A. 12x12	12	12	12	12	12	860
8	SI-C.A. 13x8	13	8	13	8	20.5	535
9	SI-C.A. 13x10	13	7.3	10.3	10	22	504
10	SI-C.A. 13x13	13	7.3	7.3	13	22	505
11	SI-C.A. 15x15	16.76	15	15	16.76	15	591
12	SI-C.A. 16x16	16	9	9	16	16	1051
13	SI-C.A. 20x20	20	12	12	20	20	1707
